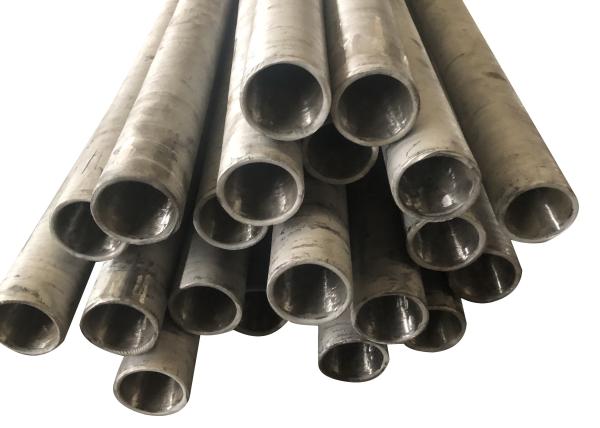

AISI 304l Seamless Stainless Steel Pipe 304 316 316l 9.0mm

Ask Lasest Price
Brand Name :	ZHE HENG
Model Number :	ASTM316,ASTM316L
Certification :	BV, PED, ISO9001
Price :	$1000-4200/Ton
Payment Terms :	L/C, T/T, D/P, D/A
Supply Ability :	1000+
Delivery Time :	30-45 work days

Add to Cart

Product Details
Company Profile

AISI 304l Seamless Stainless Steel Pipe 304 316 316l 9.0mm

Product Description

“Quality and quantity asssured”
Welecome know more about our company.
1.10+rich experience in stainless steel pipes,coil,duplex steel pipes,fittings and all kinds of bars;
2.Our factory standard has a number of relevant certificates,such as ISO9001,BV certified
3.Competive prices with cusomer oriednted
Any questions, pls feel free to let me know and I will reply you in 2 hours;
Looking forward to your reply!

Overiview

316 stainless steel pipe is made of 18-8 type stainless steel containing 12-14% zinc after adding 2-3%, the purpose is to improve its corrosion resistance and corrosion resistance. It has good corrosion resistance and can be used in pipelines for various oilfield chemicals, as well as in petrochemical, pharmaceutical, food, beverage and other industrial fields.

Specification:

Outside Diameter	OD 0.28-1219mm
Thickness	0.08-100mm
Seamless Stainless Steel Pipes	1/8“NB to 32“NB IN
Production Process	Cold Drawn,Bright Anneal.etc
Type	Seamless,welded
Surface	Pickling,Bright；
Price Item	EXW,FOB,CNF,CIF etc
Application	Petrochemical, Pharmaceutical, Food, Beverage and other industrial fields.
Ends:	Beveled or plain end, square cut, burr free

Stainless Steel Seamless Pipe Chemical Component:

Mechanical Composition:
Grade	Tensile	Yield	%Age	Hardness (Max)
	Strength Mpa, (Min)	Strength	Elongation
		Mpa, (Min)	in 50mm
		Mpa, (Min)	gauge length min	BHN	Rb
316	515	205	40	217	95
316L	485	170	40	217	95

Size table:

Seamless stainless steel pipes

WALL THCKNESS FOR STAINLESS STEEL PIPE &T UBE (ASME B36.10 & B36.19)
DNmm	DNin	φmm	SCH5S	SCH10S	SCH40S	STD	Sch40	Sch60	Sch80s	XS	Sch80	Sch120	Sch140	Sch160	XXS
6	1/8	10.3		1.24	1.73	1.73	1.73		2.41	2.41	2.41
8	1/4	13.7		1.65	2.24	2.24	2.24		3.02	3.02	3.02
10	3/8	17.1		1.65	2.31	2.31	2.31		3.2	3.2	3.2
15	1/2	21.3	1.65	2.11	2.77	2.77	2.77		3.73	3.73	3.73			4.78	7.47
20	3/4	26.7	1.65	2.11	2.87	2.87	2.87		3.91	3.91	3.91			5.56	7.82
25	1	33.4	1.65	2.77	3.38	3.38	3.38		4.55	4.55	4.55			6.35	9.09
32	1 1/4	42.2	1.65	2.77	3.56	3.56	3.56		4.85	4.85	4.85			6.35	9.7
40	1 1/2	48.3	1.65	2.77	3.68	3.68	3.68		5.08	5.08	5.08			7.14	10.15
50	2	60.3	1.65	2.77	3.91	3.91	3.91		5.54	5.54	5.54			8.74	11.07
65	2 1/2	76	2.11	3.05	5.16	5.16	5.16		7.01	7.01	7.01			9.53	14.02
80	3	88.9	2.11	3.05	5.49	5.49	5.49		7.62	7.62	7.62			11.13	15.24
90	3 1/2	101.6	2.11	3.05	5.74	5.74	5.74		8.08	8.08	8.08
100	4	114.3	2.11	3.05	6.02	6.02	6.02		8.56	8.56	8.56	11.13		13.49	17.12
125	5	141.3	2.77	3.4	6.55	6.55	6.55		9.53	9.53	9.53	12.7		15.88	19.05
150	6	168.3	2.77	3.4	7.11	7.11	7.11		10.97	10.97	10.97	14.27		18.26	21.95
200	8	219.1	2.77	3.76	8.18	8.18	8.18	10.31	12.7	12.7	12.7	18.26	20.62	23.01	22.23
250	10	273	3.4	4.19	9.27	9.27	9.27	12.7	12.7	12.7	15.09	21.44	25.4	28.58	25.4
300	12	323.8	3.96	4.57	9.53	9.53	10.31	14.27	12.7	12.7	17.48	25.4	28.58	33.32	25.4
350	14	355.6	3.96	4.78		9.53	11.13	15.09		12.7	19.05	27.79	31.75	35.71
400	16	406.4	4.19	4.78		9.53	12.7	16.66		12.7	21.44	30.96	36.53	40.49
450	18	457	4.19	4.78		9.53	14.27	19.05		12.7	23.83	34.93	39.67	45.24
500	20	508	4.78	5.54		9.53	15.09	20.62		12.7	26.19	38.1	44.45	50.01
550	22	559	4.78	5.54		9.53		22.23		12.7	28.58	41.28	47.63	53.98
600	24	610	5.54	6.35		9.53	17.48	24.61		12.7	30.96	46.02	52.37	59.54
650	26	660				9.53				12.7
700	28	711				9.53				12.7
750	30	762	6.35	7.92		9.53				12.7
800	32	813				9.53	17.48			12.7

Conforms to ANSI B36.19 and ANSI B36.10 standards

AISI 304l Seamless Stainless Steel Pipe 304 316 316l 9.0mm

FAQ:
Q: Are you a manufacturer or merely a trader?
A: We are group of companies and owned manufacturer bases and trading company. We specialized in special steel which include alloy structural steel and carbon steel and stainless steel, etc. All material are with high quality and competitive price.
Q: How do you guarantee the quality of your product?
A: Firstly, we can provide the certificates from the third party, such as TUV, CE, if you need. Secondly, we have a complete set of inspection system and every process is checked by QC. Quality is the lifeline of enterprise survival.
Q: Delivery time?
A: We have ready stock for most of material grades in our warehouse. If the material don't have stock, the delivery lead time is about 5-30 days after receiving your prepayment or firm order.
Q: What is the payment term?
A: T/T or L/C.
Q: Can you provide a sample for our testing before confirm the order?
A: Yes. We can provide sample to you for approval before you place an order to us. Free sample is available if we have stock.
Q: Can we visit your company and factory?
A: Yes, warmly welcome! We can book the hotel for you before you come to China and arrange our driver to our airport to pick you up when you come.
