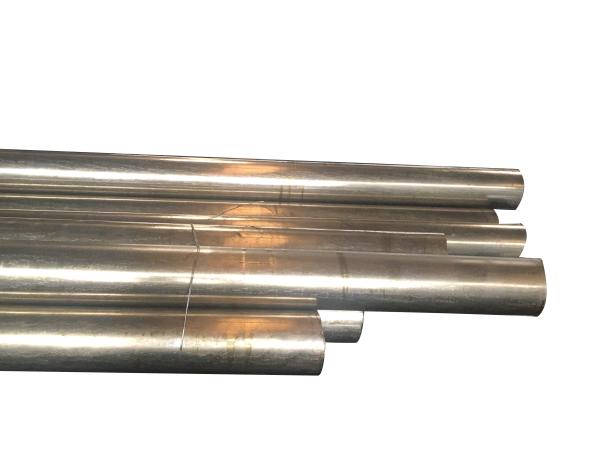

DIN EN 1.4404 Stainless Steel Tube hot finish used in processing industry


EN 1.4404 material (stainless steel X2CrNiMo17-12-2) is a low-carbon version of 1.4401 (X5CrNiMo17-12-2), the maximum carbon content is only 0.03%, while 1.4401 is up to 0.07%, so the weldability and corrosion resistance of 1.4404 stainless steel is better than 1.4401. The chemical composition of materials 1.4404 and 1.4401 contains molybdenum (Mo), while EN 1.4301 (X5CrNi18-10) and 1.4307 (X2CrNi18-9) do not. Molybdenum improves the heat resistance of steel and resists pitting and crevice corrosion in environments containing chlorides or other halides.

Applications:
Construction, construction, processing industry, reinforcement, easy welding and machining


Description for our production range:

Chemical Composition

our products packing:



other supplement:
1.A999/A999M: Each pipe shall be subjected to the nondestructive electric test or the hydrostatic test, the pipe of test to be used shall be at the option of the mfg, unless otherwise specified in the PO.
2. The Pipe lengths : Unless otherwise agreed upon, all size from NPS 1/8" TO AND INCLUDING nps 8 are available in a length up to 24ft with the permitted range of 15 to 24 ft. Short length are acceptable and the number and min, length shall be agreed upon between mfg and purchaser.
3. The finished pipe shall be reasonably straight and shall have workmanlike finish, Removal of imperfections by grinding is permitted, provided the W.T are not decreased to the less than the permitted in Section 9 of Specification A999/A999M
4. Butt Weld End: According to ANSI B 16.25
5. Pipe Marking: Specified in A999/999M, include "Logo+Standard+SIZE+Heat No.+Lot No.+H.T/E.T/U.T"
6. Packing: Each Pipe end is protected by Plastic cap. Then packed by Anti-rust steel strip, The outside of the bundle is plastic woven bag, or Plastic film.
7. Packing Mark: SIZE + STEEL GRADE+ QTY OF PIECE/WEIGHT/METRE.
8.MTC: BWSS Official Original MTC paper will be supplied for each order.

Zheheng steel is one  incorporate of manufacturer, Exporter ,consultant ,stockist company specialized in the area of stainless steel tubing , pipe fittings ,Flanges and other stainless steel grade accessories . It is one-stop-shop company ,our team have more than 20 years experience in stainless steel field ,especially in heat exchanger tubing and large diameter pipes with ultra-long, ultra-thin, ultra-thick or ultra-large various and some special-purpose projects .

After years of efforts,we now became more and more stronger , we have consist of four company respectively located in wenzhou(headquarter),lishui,chengdu city,two factorys of ss stainless pipe workshop in lishui ,another one ss pipe fittings workshop located in wenzhou ,one domestic sales company located in chengdu.

On Time, On Budget, For Over 20 Years

Our reputation is for providing competitive prices, technical services and on time deliveries for every project for over 20 years. Our inventory is computerized so our employees can respond quickly to all your requests. If a specific product is not in stock when you request it, we guarantee same day shipping or shortest lead time available.

Our regular feture products are 304/304L,316L, 321,310s,austentic serious ,duplex steel 2205 ,hastelloy c276,inconel 625 ,and super stainless steel 904L , All of our products meet or exceed AISI/ASTM A213 ,A269,A312,EN 10216,GHOST 9941 ,GB,JIS standard. per your specific requirements and include full documentation.

More photos about our workshop :
