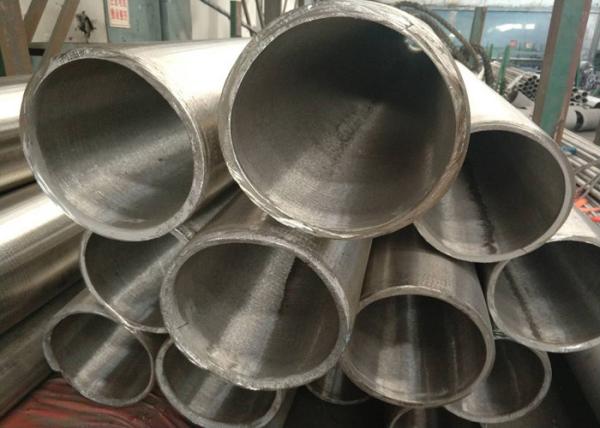

ASTM A269 304L heat exchanger stainless steel coil tube for
electric heating element
Standard:JIS, AISI, ASTM, GB, DIN
Grade:201/202/304/304L/316/316L/430
Outer Diameter:6mm-530mm (1/8"-20")or as the customers'
requirements
Length:6000mm or as the customers' requirements
Thickness:1mm-60mm
Surface:180G, 240G, 320G Satin / Hairline,400G, 600G ,Mirror finish
Type:pipe
Other Grade:TP304, TP304L, TP310S, TP316L, TP316 / 316L dual grade,
TP317L, TP309S, TP410,TP420,TP430,TP904L
Application:
Construction field, ships building industry, petroleum & chemical
industries, war and electricity industries, food processing and
medical
industry, boiler heat exchanger, machinery and hardware fields
,etc.
Packing:Weaving bag, non-woven fabric, seaworthy bundle,wooden case
if required
Delivery time:Within 15working days, according to customers'
quantities
Payment:L/C or T/T
Certificate: SGS BV IBR ISO
Quality :High Quality.SGS inspection is accepted if needed
Productivity: 500 Tons/Month
Attention:We will supply you good quality and bottom price and
first-class service in china and hope to be your golden supplier.
Radiographic Examination:
The entire length of weld in each double welded pipe shall be
radiographically examined, using X-radiation, in accordance with
Paragraph UW-51 of Section VIII Division 1
of the ASME Boiler and Pressure Vessel Code. In addition to the
marking required by Section 13 each pipe shall be marked“RT” after
the specification and grade. Requirements of S5
shall be required in the certification.
Stabilizing Heat Treatment:
Subsequent to the solution anneal required in 6.2,Grades TP309HCb,
TP310HCb, TP321, TP321H, TP347,TP347H, TP348, and TP348H shall be
given a stabilization heat treatment at a temperature lower than
that used for the initial solution annealing heat treatment. The
temperature of stabilization heat treatment shall be as agreed upon
between the purchaser and vendor.
chemical composition:
| Chemical Composition of Material | Material
Composition | 201 | 202 | 304 | 316 | 430 |
| C | ≤0.15 | ≤0.15 | ≤0.08 | ≤0.08 | ≤0.12 |
| Si | ≤1.00 | ≤1.00 | ≤1.00 | ≤1.00 | ≤1.00 |
| Mn | 5.5-7.5 | 7.5-10 | ≤2.00 | ≤2.00 | ≤1.00 |
| P | ≤0.06 | ≤0.06 | ≤0.045 | ≤0.045 | ≤0.040 |
| S | ≤0.03 | ≤0.03 | ≤0.030 | ≤0.030 | ≤0.030 |
| Cr | 16-18 | 17-19 | 18-20 | 16-18 | 16-18 |
| N | 3.5-5.5 | 4-6 | 8-10.5 | 10-14 | |
| Mo | | | | 2.0-3.0 | |
Mechanical Property | Material Item | 201 | 202 | 304 | 316 |
| Tensile Strength | ≥535 | ≥520 | ≥520 | ≥520 |
| Yield Strength | ≥245 | ≥205 | ≥205 | ≥205 |
| Extension | ≥30% | ≥30% | ≥35% | ≥35% |
| Hardness (HV) | <253 | <253 | <200 | <200 |
production range:
| Austenitic Steel: | TP304,TP304L,TP304H,TP304N, TP310S,TP316,TP316L,TP316Ti,TP316H,
TP317,TP317L, TP321, TP321H,TP347, TP347H,904L… |
| Duplex Steel : | S32101,S32205,S31803,S32304,S32750, S32760
Others:TP405,TP409, TP410, TP430, TP439 ... |
| Russia Standard |
08Х17Т,08Х13,12Х13,12Х17,15Х25Т,04Х18Н10,08Х20Н14С2, 08Х18Н12Б,
10Х17Н13М2Т,10Х23Н18,08Х18Н10,08Х18Н10Т, 08Х18Н12Т,08Х17Н15М3Т,
12Х18Н10Т,12Х18Н12Т,12Х18Н9, 17Х18Н9, 08Х22Н6Т, |
| European Standard | 1.4301,1.4307,1.4948,1.4541,1.4878,1.4550,1.4401,1.4404,1.4571,
1.4438,1.4841,1.4845,1.4539,1.4162, 1.4462, 1.4362, 1.4410, 1.4501 |
