P12,15CrMo,13CrMo44 Seamless Chromer Alloy Steel Boiler Pipe
We zheheng steel is one of exporter ,manufacturer ,stockist .supply
of ASTM A335 p12 seamless alloy pipe,p12 seamless pipe p12 alloy
pipe, p12 seamless alloy steel pipe,A335 p12 seamless alloy steel
pipe exporter,p12 ss seamless alloy steel pipe supplier ,according
to standard ASME SA210,ASME SA213,ASTM SA335, ASTMA335/A335m,ASTMA213/A213m,DIN
17175 ,and other steel grade
12Cr1MoV,P2(10CrMo910),T91,P91,P9,T9,Cr5Mo,15CrMo,P11,P12,
13CrMo44,25CrMo,30CrMo,40CrMo,12CrMo,X12CrMo91,12Cr2Mo
General Requirements
Material furnished to this specification shall conform to the
applicable requirements of the current edition of Specification A
999/A 999M, unless otherwise provided herein.
Product description:
Item | Cold Rolled / Cold Drawn alloy steel seamless pipe |
Standard | JISG3467-88,JISG3458-88,GB3087,GB6479-2000,GB9948-2006,
GB5310-95,GB9948-88,ASME SA210,ASME SA213,ASTM SA335,
ASTMA335/A335m,ASTMA213/A213m,DIN 17175 |
Model No. | 12Cr1MoV,P2(10CrMo910),T91,P91,P9,T9,Cr5Mo,15CrMo,P11,P12,
13CrMo44,25CrMo,30CrMo,40CrMo,12CrMo,X12CrMo91,12Cr2Mo |
Description | Surface | black painted,PE coated,galvanized |
| Length | 6m,5.8m,11.8m,12m, or as required |
| Wall Thickness | 1-120mm |
| Outer Diameter | 6-1200mm |
Trade terms | Payment terms | T/T,L/C,western union |
| Price terms | FOB,CIF,CFR,Ex-work,CNF |
Zheheng steel Chemical assurance
1.Each lot of raw materials will be tested by spectrometer before
put in storage.
2.100%PMI the mother pipe to ensure we put right material.
2.100%PMI the finished pipe again to ensure we produced right grade
| Grade | C | Si | Mn | P | S | Cr | Mo |
| P12 | 0.05-0.15 | Max.0.50 | 0.3-0.61 | Max.0.025 | Max.0.025 | 0.8-1.25 | 0.44-0.65 |
| Mechanical properties | | | | | | | |
| Grade | Yield point (Mpa) | Tensile strength (Mpa) | Elongation(%) | Impact value(J) | | | |
| P12 | ≥220 | ≥415 | See table | ≥35 | | | |
Heat Treatment Assurance
A full-automatic natural gas furnace with 24 meters in length.The
real temperature tolerance could be within 10℃.
QUALITY CONTROL
1~ Incoming Raw Material Inspection
2~ Raw Material Segregation to avoid steel grade mix-up
3~ Heating and Hammering End for Cold Drawing
4~ Cold Drawing and Cold Rolling, on line inspection
5~ Heat Treatment, +A, +SRA, +LC, +N, Q+T
6~ Straightening-Cutting to specified length-Finished Measuring
Inspection
7~ Machanical Testing in own labs with Tensile Strength, Yield
Strength, Elongation, Hardness, Impact, Mictrostruture etc
8~ Packing and Stocking

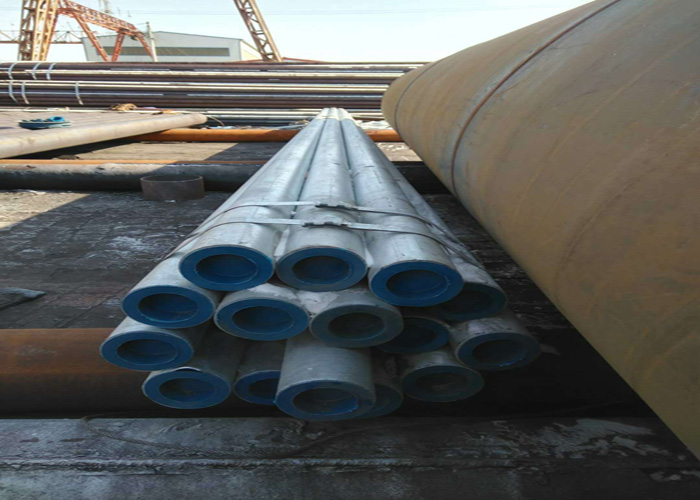

Product show:
