2.4600 / n10675 / alloy B3 / B4 nimo 29Cr / din 17744, din 17750
/din 17751 / B333 //B619,B626 hastelloy pipe
Features: Hastelloy B-3 has outstanding resistance to hydrochloric acid at
all concentrations and temperatures. It also resists sulfuric,
phosphoric, formic, acetic acids and other nonoxidizing media. It
has excellent resistance to pitting corrosion, stress corrosion
cracking, and knife line and weld heat-affected zone attack.
Hastelloy B-3 has greater thermal stability than Hastelloy B-2.
Applications: Hastelloy B-3 is suitable for the applications where Hastelloy B-2
is required. Like Hastelloy B-2, Hastelloy B-3 should not be used
in the presence of ferric or cupric salts as these salts may cause
rapid corrosion attack.
Products description:
Equivalent designations
UNS N10675
DIN W. Nr. 2.4600
| Form | ASTM |
| Rod | B 335 |
| Plate, sheet and strip | B 333, B 906 |
| Seamless pipe and tube | B 622 |
| Welded pipe | B 619, B 775 |
| Welded tube | B 626, B 751 |
| Welding fitting | B 366 |
| Forged or rolled pipe flange and forged fitting | B 462 |
| Billet and bar for reforging | B 472 |
| Forging | B 564 |
Chemical composition
| % | Ni | Mo | Ni+Mo | Cr | Fe | W | Co | C | Mn | Si | P | S | Al | Ti | Cu | Nb | Ta | V | Zr |
| min | 65 | 27 | 94 | 1 | 1 | | | | | | | | | | | | | | |
| max | | 32 | 98 | 3 | 3 | 3 | 3 | 0.01 | 3 | 0.1 | 0.03 | 0.01 | 0.5 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.1 |
Physical properties:
| Density | 9.22 g/cm3 |
| Melting range | 1370-1418℃ |
Scope
1 This specification covers welded tubes made from the nickel and
nickel-cobalt alloys (UNS N10001, UNS N10242, UNS N10665, UNS
N12160, UNS N10629, UNS N10624, UNS N10675, UNS N10276, UNS N06455,
UNS N06007,UNS N06975, UNS N08320, UNS N06985, UNS N06002,UNS
N06022, UNS N06030, UNS N06035, UNS N06058,UNS N06059, UNS N06200,
UNS N06617, UNS N10362,
UNS N06210, UNS N08031, UNS R30556, UNS N06230,UNS N06686, and UNS
R20033)
for heat exchanger and condenser tubes and tubes for
generalcorrosive service for heat-resisting applications.
2 This specification covers tube 1 ⁄ 8 to 3 1 ⁄ 2 in. (3.2 to 88.9
mm) in outside diameter and 0.015 to 0.148 in. (0.41 to 3.7mm)
inclusive, in wallthickness.
3 The values stated in inch-pound units are to be regarded as
standard. The values given in parentheses are mathematical
conversions to SI units that are provided for information only
and are not considered standard.
1.4 This standard does not purport to address all of the safety
concerns, if any, associated with its use. It is the responsibility
of the user of this standard to become familiar with all hazards
including those identified in the appropriate
Safety Data Sheet (SDS) for this product/material as provided by
the manufacturer, to establish appropriate safety and health
practices, and determine the applicability of regulatory
limitations prior to use..

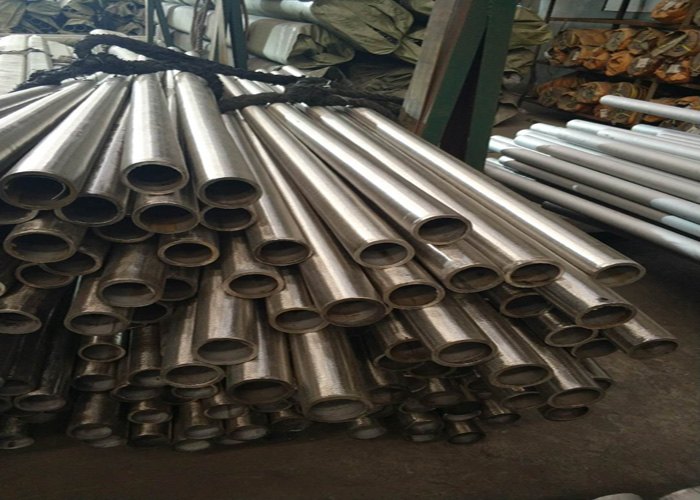

product show:
