    WP304 ASTM A403 Stainless Steel Pipe Reducer Fittings High Pressure Metric

    Ask Lasest Price
    Brand Name : zheheng
    Model Number : 4"*sch10s
    Certification : ISO9001 PED
    Price : Negotiable
    Payment Terms : L/C, T/T, D/A, D/P
    Supply Ability : 100TONS/30DAYS
    Delivery Time : 30 DAYS
    • Product Details
    • Company Profile

    WP304 ASTM A403 Stainless Steel Pipe Reducer Fittings High Pressure Metric

    AISI ASME B16.9 LR 45 90 degree wp304/321 stainless steel elbow connector


    We're manufacturer of AISI ASME B16.9 LR 45 90 degree wp304/321 stainless steel elbow connector,such as elbow,tee,reducer,cross,ferrule,clamp,gasket,sight glass and unions etc. non-standard products are welcome!


    Product Desciption

    Pipe reducers are mainly used in the following areas:
    1. Pipe reducer is useful when there is a requirement on change of fluid flow rate.
    2. It is used for pump inlet to prevent cavitation.
    3. It is fit for the connectors of instruments, such as flowmeter and control valve.

    Size
    Seamless Pipe Reducer: 1/2"~32" DN15~DN800
    Welding Pipe Reducer:6"~60" DN150~DN1500
    Wall Thickness
    sch10, sch20, sch30, std, sch40, sch60, xs, sch80, sch100,
    sch120, sch140, sch160, xxs, sch5s, sch20s, sch40s, sch80s
    Max. thickness: 200mm

    Materials
    Carbon steel: ASTM/ASME A234 WPB-WPC
    Alloy steel: ASTM/ASME A234 WP 1-WP 12-WP 11-WP 22-WP 5-WP 91-WP 911
    Stainless steel: ASTM/ASME A403 WP 304-304L-304H-304LN-304N
    ASTM/ASME A403 WP 316-316L-316H-316LN-316N-316Ti
    ASTM/ASME A403 WP 321-321H ASTM/ASME A403 WP 347-347H
    Low temperature steel: ASTM/ASME A402 WPL 3-WPL 6
    High performance steel: ASTM/ASME A860 WPHY 42-46-52-60-65-70


    Description for elbow

    NameElbow
    SizeSeamless(SMLS) Elbows : 1/2"-24" ,DN15-DN600
    Butt Welded Elbows (seam) :24”-96",DN600-DN1800
    TypeLR 30,45,60,90,180 degree SR 30,45,60,90,180 degree
    ThicknessSCH10,SCH20,SCH30,STD SCH40, SCH60, XS, SCH80., SCH100, SCH120, SCH140, SCH160, XXS
    StandardASME,ANSI B16.9;
    DIN2605,2615,2616,2617,
    JIS B2311 ,2312,2313;
    EN 10253-1 ,EN 10253-2

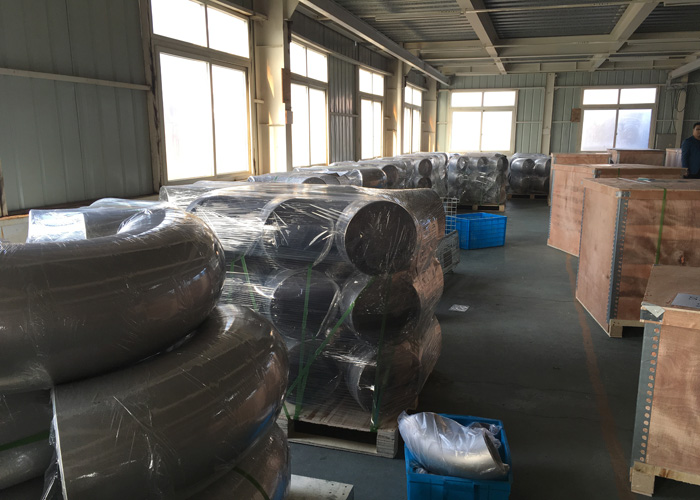

    Wp304/321 stainless steel elbow connector product show
