W-Nr 1.4462, W-Nr 1.4417,W-Nr 1.4507,W-Nr 1.4501,W-Nr 1.4362,W-Nr
1.4410, W- duplex steel pipe
zheheng steel supply to you high quality W-Nr 1.4462 duplex steel
pipe, W-Nr 1.4417 duplex steel pipe,W-Nr 1.4507 duplex steel
pipe,W-Nr 1.4501 duplex steel pipe,W-Nr 1.4362 duplex steel
pipe,W-Nr 1.4410 duplex steel pipe, W- duplex steel pipe, we are
aslo W-Nr 1.4462 duplex steel pipe manufacturer , W-Nr 1.4417
duplex steel pipe exporter,W-Nr 1.4507 duplex steel pipe
producer,W-Nr 1.4501 duplex steel pipe stockholder,W-Nr 1.4362
duplex steel pipe supplier,W-Nr 1.4410, W- duplex steel pipe
Duplex steel pipes general description:
1. Surface Pickling, annealing, polishing, bright, sand blast, hair
line, etc.
2. Price Term Ex-work, FOB, CFR, CIF, or as required.
3. Payment Term T/T, L/C, Western Union.
4. MOQ 500kg
5. Delivery Time Prompt delivery or according to order's quantity.
6. Package
Export standard package: bundled wooden box, suit for all kinds of
transport,or be required.
Duplex steel pipe details description:
| 1. | Item | s steel pipe |
| 2. | Material | W-Nr 1.4417,W-Nr 1.4507,W-Nr 1.4501,W-Nr 1.4362,W-Nr 1.4410, W-Nr 1.4460,SAF 2205,SAF 2507,SAF 2304,etc. |
| 3. | Specifications | Wall thickness | 1.0-150mm(SCH10S-XXS) |
| Outside diameter | 3.0-2500mm(1/8"-100") |
| Length | 6m,5.8m,8m,11.8m,12m or as required. |
| | |
Duplex steel pipe chemical composition:
| Steel Grade | C≤ | Mn≤ | Si≤ | S≤ | P≤ | Cr | Ni | Mo | Cu≤ | N |
S32750((SAF2507) 00Cr22Ni7Mo4N | 0.03 | 1.20 | 0.80 | 0.020 | 0.035 | 24.0/ 26.0 | 6.0/ 8.0 | 3.0/ 5.0 | 0.50 | 0.24/ 0.32 |
S31803(SAF2205) 00Cr22Ni5Mo3N | 0.03 | 2.00 | 1.0 | 0.02 | 0.030 | 21.0/ 23.0 | 4.50/ 6.50 | 2.50/ 3.50 | | 0.08/ 0.20 |
S31500(3RE60) 00Cr18Ni5Mo3Si2 | 0.03 | 1.2/ 2.00 | 1. 4/ 2.00 | 0.030 | 0.030 | 18.0/ 19.0 | 4.25/ 5.25 | 2.50/ 2.00 | | 0.05/ 0.10 |
| Steel Grade | Heat Treatment℃ | Ab(MPa)≥ | As(MPa)≥ | EL≥ | HB | HRC |
S32750(SAF2507) 00Cr22Ni5Mo3N | 1025-1125 | 800 | 550 | 15 | 310 | 32 |
S31803(SAF2205) 00Cr22Ni5Mo3N | 1020-1100 | 620 | 450 | 25 | 290 | 30.5 |
S31500(3RE60) 00Cr18Ni5Mo3Si2 | 980-1040 | 630 | 440 | 30 | 290 | 30.5 |
Product Analysis
1 An analysis of either one billet or one length of flat-rolled
stock or one tube shall be made from each heat. The chemical
composition thus determined shall conform to the
requirements specified.
2 A product analysis tolerance (see the annex table on Chemical
Requirements (Product Analysis Tolerances) in SpecificationA 480/A
480M) shall apply. The product analysis
tolerance is not applicable to the carbon content for material with
a specified maximum carbon of 0.04 % or less.
3 If the original test for product analysis fails, retests of two
additional billets, lengths of flat-rolled stock, or tubes shall be
made. Both retests for the elements in question shall meet the
requirements of this specification; otherwise, all remaining
material in the heat shall be rejected or, at the option of the
producer, each billet or tube may be individually tested for
acceptance. Billets, lengths of flat-rolled stock, or tubes that do
not meet the requirements of this specification shall be rejected.

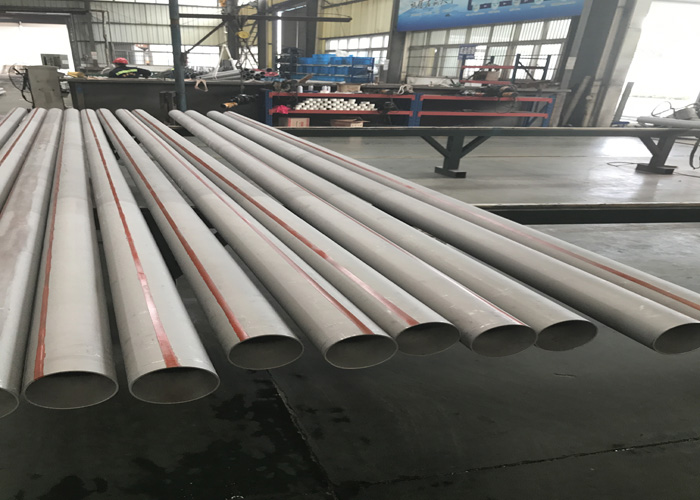

Product show:
