Buy asme schedule 10 / 40 /80 industrial small / large diameter
stainless steel pipe for marine grade
zheheng steel supply and produce schedule 10 stainless steel
pipe,schedule 40 stainless steel pipe,schedule 80 stainless steel
pipe,small stainless steel pipe,large diameter stainless steel
pipe,
large stainless steel pipe,marine grade stainless steel
pipe,industrial stainless steel pipe,asme stainless steel pipe,
Our product range:
Material:
201.202.301.302.304.304L.310S.316.316L.321.430.430A.309S.2205.2507.2520.430.410.440.904Lect.
Or Customized
Standard: GB, AISI, ASTM, ASME, EN, BS, DIN, JIS
Size: ANSI /ASME size is under,other standard of size is for ready
choice,O.D.:0.23''to 48''(5.8-1219mm)W.T.:0.04''to 2''(1.0-50.8mm)
Length: Max.18 Meter,NPS 1/8''-48''
Schedule:5/5S,10/10S,20/20S,40/40S,80/80S,120/120S,160/160S
according to ANSI B36.19/36.10
Surface: Satin Finish(180#.240#.320#).,Bright
Finish(400#,600#,mirror),Mill
Finish(2B),Hairline-Finish(HL/Brushed),Ti-gold, Glossy matt,dull
and so on.
Application: Decoration, construction and upholstery, etc
Package: Each tube in a plastic bag with size label outside and
pack in small bundles or according to customer request
Lead Time: 7-10days for one FCL Or according to order list detail
Payment: A: 100% T/T advance. ( For small order.) B: 30% T/T and
balance against copy of documents.
C: 30% T/T advance, balance L/C at sight D: 30% T/T , balance L/C
usance
E: 100% L/C usance. F: 100% L/C at sight.
Sample: we could offer the sample for free charge but do not pay
the cost of freight.
SCH10 ,SCH40,SCH80 Nominal wall thickness comparsion table
| Nominal wall thickness comparsion table for stainless steel pipe
(ASME B36.10 & B36.19) |
| DNmm | DNin | φmm | SCH10S | SCH40S | Sch40 |
| 6 | 1/8 | 10.3 | 1.24 | 1.73 | 1.73 |
| 8 | 1/4 | 13.7 | 1.65 | 2.24 | 2.24 |
| 10 | 3/8 | 17.1 | 1.65 | 2.31 | 2.31 |
| 15 | 1/2 | 21.3 | 2.11 | 2.77 | 2.77 |
| 20 | 3/4 | 26.7 | 2.11 | 2.87 | 2.87 |
| 25 | 1 | 33.4 | 2.77 | 3.38 | 3.38 |
| 32 | 1 1/4 | 42.2 | 2.77 | 3.56 | 3.56 |
| 40 | 1 1/2 | 48.3 | 2.77 | 3.68 | 3.68 |
| 50 | 2 | 60.3 | 2.77 | 3.91 | 3.91 |
| 65 | 2 1/2 | 76 | 3.05 | 5.16 | 5.16 |
| 80 | 3 | 88.9 | 3.05 | 5.49 | 5.49 |
| 90 | 3 1/2 | 101.6 | 3.05 | 5.74 | 5.74 |
| 100 | 4 | 114.3 | 3.05 | 6.02 | 6.02 |
| 125 | 5 | 141.3 | 3.4 | 6.55 | 6.55 |
| 150 | 6 | 168.3 | 3.4 | 7.11 | 7.11 |
| 200 | 8 | 219.1 | 3.76 | 8.18 | 8.18 |
| 250 | 10 | 273 | 4.19 | 9.27 | 9.27 |
| 300 | 12 | 323.8 | 4.57 | 9.53 | 10.31 |
| 350 | 14 | 355.6 | 4.78 | | 11.13 |
| 400 | 16 | 406.4 | 4.78 | | 12.7 |
| 450 | 18 | 457 | 4.78 | | 14.27 |
| 500 | 20 | 508 | 5.54 | | 15.09 |
| 550 | 22 | 559 | 5.54 | | |
| 600 | 24 | 610 | 6.35 | | 17.48 |
| 650 | 26 | 660 | | | |
| 700 | 28 | 711 | | | |
| 750 | 30 | 762 | 7.92 | | |
| 800 | 32 | 813 | | | 17.48 |
| 850 | 34 | 864 | | | 17.48 |
| 900 | 36 | 914 | | | 19.05 |

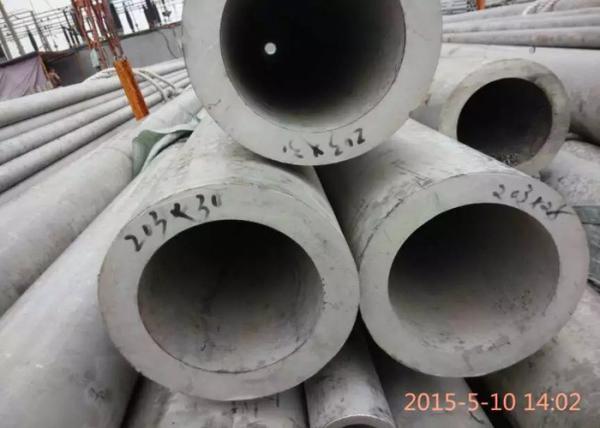

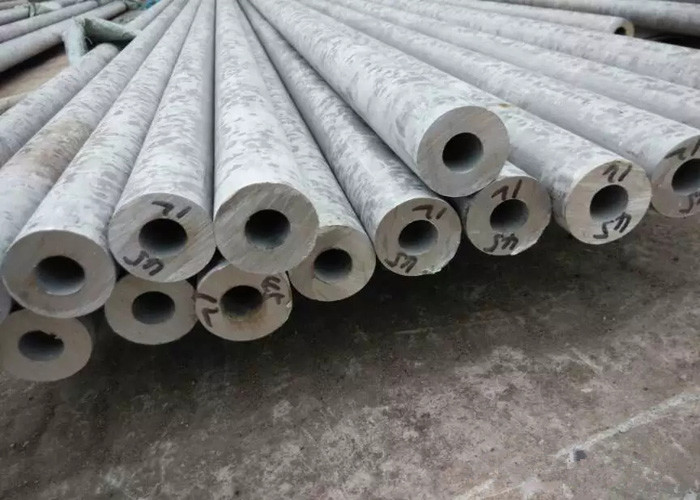

Our product show :
