supply ASTM A270 Sanitary (Hygienic) Stainless Steel Tubing and
Pipe 600 surface
zheheng steel is one manufacturer ,exporter ,supplier of astm a270
sanitary (hygienic) stianless steel tubing,we are not only give you
the compettive price but also have good quality.
more parameter about A270
ASTM A270 stainless steel tube size range
ASTM A270 sanitary stainless pipe usually refers to the small pipe
diameters, normally from 1/2” to 2 1/2”, thickness from 0.049 in
(1.24mm) to 0.15 in (3.81mm).
The maximum outer diameter of ASTM A270 tubing is 12 inches (304.8
mm).
ASTM A270 tubing using inch-pound as the standard unit of measure.
Wall thickness tolerance shall not vary more than 12.5%.
Referred standard for ASTM A270 sanitary tubing
ASTM A 262: Methods of detecting intergranular corrosion for the
magnetization coefficient.
ASTM A 480/A 480 M is the general specifications for flat stainless
steel, heat-resistant stainless steel plate, sheet and steel bars.
ASTM A 923 Test methods for detecting detrimental intermetallic
phase in duplex austenitic/ferritic stainless steels
ASTM A 967 is the specification of passivation treatment for
stainless parts .
ASTM A 1016/1016 M is the general specification for ferritic alloy
steel, austenitic alloy steel and stainless steel.
E 527 is the test methods for numbering metal and alloy
ASTM B 46.1 surface structure (surface roughness, waviness and
layers).
ASME boiler and pressure vessel’s numbers and other standards.

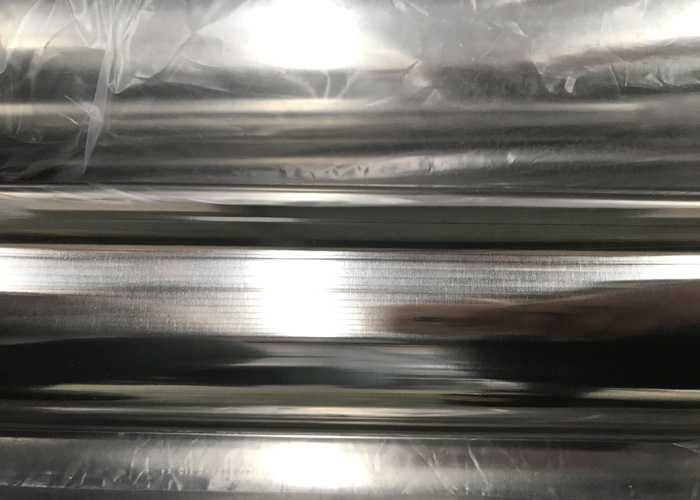

1. Superior Surface Finish
The traditional annealing :Open furnace---Oxygen atmosphere---form
Scale, tarnish the material,For more than 12m tubes this method is
hard to clean inner surface.
A special bright annealing:Closed furnace---Intert atmosphere use
noble gases(Nitrogen and argon)Preventing Oxygen to contact with
marterial ---Surface finish is clean,bright and precision,which is
an excellent starting point for further process,like
electro-polishing and mechanical polishing. For more than 12m
tubes,this method is much cleaner smoother on both inner and outer
surface.
2. Better Mechanical Property
The temperature of furnace can reach more than 1350℃,and the
tolerance for setting and real temperature can be controlled
whithin +/-2℃,which is impossible for the traditional annealing.
3. Perfect Inspection Method And Inspection Equipment
100%PMI test
100%Hydraulic test
100%Inner cleaned by sponge
100%Dimension test
100%Surface test
Quality of precision drawn tubing is same to precision rolling.
4. More Precision Dimension
Advanced cold drawn technology from Japan and Korean,Making the
close dimension controls.
| Size | OD Inches | ID Inches |
| | SCH 5 | SCH 10 | SCH 40 | SCH 80 | SCH 160 |
| 1/2″ | .84″ | 0.71″ | .92″ | .622″ | .546″ | 0.464″ |
| 3/4″ | 1.05″ | .920″ | .884″ | .828″ | .742″ | 0.612″ |
| 1″ | 1.315″ | 1.185″ | 1.097″ | 1.049″ | .957″ | .815″ |
| 1 1/2″ | 1.9″ | 1.77″ | 1.682″ | 1.610″ | 1.50″ | 1.338″ |
| 2″ | 2.375″ | 2.245″ | 2.157″ | 2.067″ | 1.939″ | 1.687″ |
| 3″ | 3.5″ | 3.334″ | 3.760″ | 3.068″ | 2.901″ | 2.624″ |
| 4″ | 4.5″ | 4.334″ | 4.26″ | 4.026″ | 3.726″ | 3.438″ |
.
| Production Range: |
| Austenitic Steel: | TP304,TP304L,TP304H,TP304N, TP310S,TP316,TP316L,TP316Ti,TP316H,
TP317,TP317L, TP321, TP321H,TP347, TP347H,904L… |
| Duplex Steel : | S32101,S32205,S31803,S32304,S32750, S32760
Others:TP405,TP409, TP410, TP430, TP439 ... |
| Russia Standard |
08Х17Т,08Х13,12Х13,12Х17,15Х25Т,04Х18Н10,08Х20Н14С2, 08Х18Н12Б,
10Х17Н13М2Т,10Х23Н18,08Х18Н10,08Х18Н10Т, 08Х18Н12Т,08Х17Н15М3Т,
12Х18Н10Т,12Х18Н12Т,12Х18Н9, 17Х18Н9, 08Х22Н6Т, |
| European Standard | 1.4301,1.4307,1.4948,1.4541,1.4878,1.4550,1.4401,1.4404,1.4571,
1.4438,1.4841,1.4845,1.4539,1.4162, 1.4462, 1.4362, 1.4410, 1.4501 |
