AISI 410 430 Seamless Stainless Steel Tubing , Ss Round Tube Cold
Drawing
zheng steel as one of exporter ,producer ,supplier of ASTM AISI 405
409 410 430 stainless steel seamless tubing / 409 ss pipe / 410 ss
tube located in china.
Features:
1) Excellent deep drawing performance, similar to 304 steel;
2) It has strong corrosion resistance to oxidizing acid, and also
has certain corrosion resistance to lye and most organic and
inorganic acids; resistance to stress corrosion is stronger than
that of 304 steel;
3) The coefficient of thermal expansion is lower than that of 304
steel, which has high oxidation resistance and is suitable for
heat-resistant equipment;
4) The appearance of cold rolled products is good and beautiful;
5) Compared with 304, the price is cheap, as an alternative steel
type for 304 steel.
Product description :
Process Method :cold drawn and cold rolled
Specification :O.D: 1/4" - 32" (inch) (6-830 mm)
W.T: SCH5S, SCH10S,SCH40S,SCH80S,SCH160S,etc. (0.5-40 mm)
Or non-regular size to be tailored as required.
Length :SPECIFIC OR AT RANDOM as required, Max 17 meters.
Steel Grade :200 (Ni : 0.8%), 201B (Ni : 3%), 201H (Ni : 5%)
301 (Ni : 6%), 304, TP304, TP304L/304L, 321, TP321, 316, TP316L,
316L, 316Ti
317, 317L, 309S, 310S(2520), UNS S31500/S31803/S32205/S32760, etc.
Standards :ASTM A312/A312M, ASTM A213/A213M, ASTM A269, ASTM
A789/A789M, ASTM A790/A790M, etc.
Delivery condition :annealed/ pickling, bright annealed, polish,
hairline, satin finish Packing:
1.with plastic cap to protect both ends
2.plastic bag wrapped outside the pipe
3.bundles to be covered by polythene & strapped securely .
4.if require ,then pack into wooden box.
Product application :petroleum industry, pharmaceutical industry,
food industry, aviation and aerospace industry, boiler and heat
exchanger industry, architectural decoration industry, fluid
transports and so on
| martensitic stainless steel |
| 32 | 1Cr12 | 12Cr12 | SUS403 | 403 | S40300 | STS403 | - | - | 403 | 403 |
| 33 | 1Cr13 | 12Cr13 | SUS410 | 410 | S41000 | STS410 | 1.4006 | 12Cr13 | 410 | 410 |
| 34 | 2Cr13 | 20Cr13 | SUS420J1 | 420 | S42000 | STS420J1 | 1.4021 | 20Cr13 | 420 | 420J1 |
| 35 | 3Cr13 | 30Cr13 | SUS420J2 | - | - | STS420J2 | 1.4028 | 30 Cr13 | 420J2 | 420J2 |
| 36 | 7Cr17 | 68Cr17 | SUS440A | 440A | S44002 | STS440A | - | - | 440A | 440A |
201,304,316l 430 stainless steel tubing chemical composition
| Material Composition | 201 | 201 | 304 | 316L | 430 |
| Chemical Composition of Material | C | ≤0.15 | ≤0.15 | ≤0.08 | ≤0.035 | ≤0.12 |
| Si | ≤1.00 | ≤1.00 | ≤1.00 | ≤1.00 | ≤1.00 |
| Mn | 5.5-7.5 | 7.5-10 | ≤2.00 | ≤2.00 | ≤1.00 |
| P | ≤0.06 | ≤0.06 | ≤0.045 | ≤0.045 | ≤0.040 |
| S | ≤0.03 | ≤0.03 | ≤0.030 | ≤0.030 | ≤0.030 |
| Cr | 13-15 | 14-17 | 18-20 | 16-18 | 16-18 |
| Ni | 0.7-1.1 | 3.5-4.5 | 8-10.5 | | |
| Mo | | | | 2.0-3.0 | |
stainless steel seamless tubing application
Application
| Architectural/Civil Engineer | Handrails, door and window fittings, steel furniture, structural
sections etc |
| Transport | Exhaust systems, car trim, road tankers, ship containers, ships
chemical tankers etc |
| Chemical/Pharmaceutical | Pressure vessels, process piping etc |
| Oil & Gas | Platform accomodation, cable trys, subsea pipelines etc |
| Water | Water and sewage treatment, water tubing, hot water tankers etc |
| Medical | Surgical instruments, surgical implanets, MRI scanners etc. |
| Food & Drink | Catering equipment, brewing, food processing etc |
Types of inspection documents :
Unless option 13 is specified, an inspection certificate 3.1, in
accordance with EN 10204, shall be issued.
The inspection certificate 3.2 in accordance with EN 10204 shall be
issued.
If an inspection certificate 3.2 is specified, the purchaser shall
notify the manufacturer of the name and address
of the organization or person who is to carry out the inspection
and produce the inspection document.
In the case of the inspection certificate 3.2, it shall be agreed
which party shall issue the certificate.
Document 3.1 and 3.2 are to be validated by the manufacturer's
authorized representative

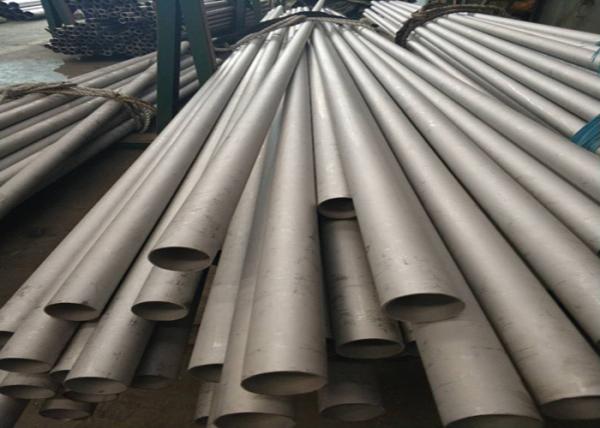

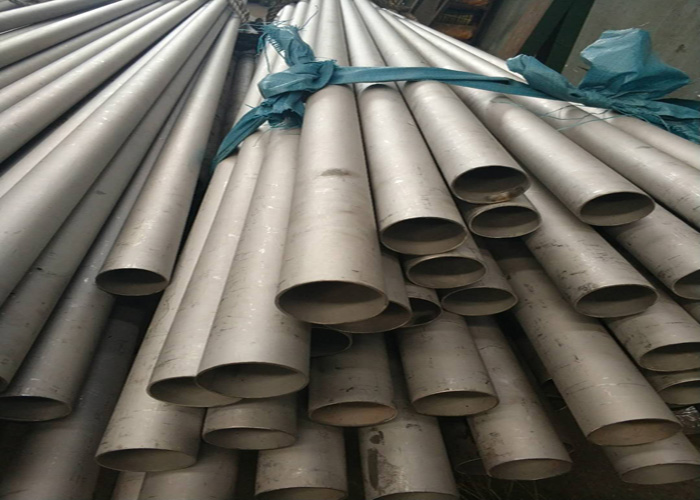

product show :
