Welding Seamless Stainless Steel Tubing , Annealing Ss Seamless
Tube ERW Type
zheheng steel is a one of supplier, exporter,manufacturer of
stainless seamless steel tubing ,ERW stainless steel seamless
tubing with compettive price high quality ,
The corrosion resistance of stainless steel seamless tubing depends
on the alloying elements contained in the steel. Chromium is the
basic element for obtaining corrosion resistance of stainless
steel. When the chromium content in steel reaches about 12%,
chromium reacts with oxygen in the corrosive medium to form a thin
oxide film (self-passivation film) on the steel surface. It can
prevent further corrosion of the steel matrix. In addition to
chromium, the alloy elements commonly used in stainless steel
seamless tubes are nickel, molybdenum, titanium, tantalum, copper,
nitrogen, etc., to meet the requirements of stainless steel
structure and performance for various purposes.
We can also supply 200 series: 201,202,202Cu,204Cu;
300 series:
301,303/Cu,304/L/H,304Cu,305,309/S,310/S,316/L/H/Ti,321/H,347/H,330;
400 series: 409/L,410,416/F,420/F,430,431,440C,441,444,446;
600 series: 13-8ph,15-5ph,17-4ph,17-7ph(630,631),660A/B/C/D;
Duplex: 2205(UNS S31803/S32205),2507(UNS S32750),UNS, S32760, 2304,
LDX2101, LDX2404, LDX4404,904L;
Alloy : Alloy 20/28/31;
Hastelloy: Hastelloy B / B-2/B-3/C22/C-4/S/
C276/C-2000/G-35/G-30/X/N;
Haynes: Haynes 230/556/188;
Inconel: Inconel
100/600/601/602CA/617/625713/718738/X-750,Carpenter 20;
Incoloy: Incoloy 800/800H/800HT/825/925/926;
GH: GH2132,GH3030,GH3039,GH3128,GH4180,GH3044;
Monel: Monel 400/K500;
Nitronic: Nitronic 40/50/60;
Nimonic: Nimonic 75/80A/90
Product Description
| Material | |
| Production Process | Cold Drawn,Cold Rolled,Bright Anneal etc |
| Type | Seamless,welded |
| Surface | Pickling,Bright etc |
| Price Item | EXW,FOB,CNF,CIF etc |
| Application | 1.Heat exahanger tube for petrochemical,chemical and ocean
development
2.Industrial furnace and heater tubes
3.for gas turbine and prochemical processing4.Condenser tubes,sulfuric and phosphoric acids tubes,API tubing
5.Construction and ornament
6.Acid production,waste incineration,FGD,paper processing
industrial |
| Packaging Details | carton or Wooden Box or as required |
| Delivery | By sea, air or express according to customers' required. |
| Sample | Free sample is available |
Standard & Tolerance: ASTM A213,ASTM A269,EN10216-5 TC1,D4/T3
NDT: Eddy Current or Hydraulic Test
Heat Treatment: Bright Annealed
3.1Chemical Composition:3. Material2.Description:
| Grade | C | Si | Mn | P | S | Ni | Cr | Mo | N |
| 201(1Cr17Mn6Ni5N) | ≤0.15 | ≤1.0 | ≤5.5 | ≤0.06 | ≤0.03 | 3.5-5.5 | 16.0-18.0 | — | ≤0.25 |
| 202(1Cr18Mn8Ni5N) | ≤0.15 | ≤0.07 | ≤7.5 | ≤0.06 | ≤0.03 | 4.0-6.0 | 17.0-19.0 | — | ≤0.25 |
| 304(0Cr18Ni9) | ≤0.08 | ≤0.07 | ≤2.0 | ≤0.04 | ≤0.03 | 8.0-11.0 | 18.0-20.0 | — | — |
| 304L(00Cr18Ni10) | ≤0.03 | ≤0.07 | ≤2.0 | ≤0.04 | ≤0.03 | 8.0-11.0 | 18.0-20.0 | — | — |
| 305 | ≤012 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 10.5-13.0 | 17.0-19.0 | | |
| 316(0Cr17Ni12Mo2) | ≤0.08 | ≤0.07 | ≤2.0 | ≤0.04 | ≤0.03 | 11.0-14.0 | 16.0-18.0 | 2.0-3.0 | — |
| 316L(0Cr17Ni14Mo2) | ≤0.03 | ≤0.07 | ≤2.0 | ≤0.04 | ≤0.03 | 11.0-14.0 | 16.0-18.0 | 2.0-3.0 | — |
| 309s | ≤0.08 | ≤1.00 | ≤2.0 | ≤0.045 | ≤0.03 | 12.00-15.00 | 22.00-24.00 | | |
| 310s | ≤0.08 | ≤1.50 | ≤2.0 | ≤0.045 | ≤0.03 | 19.00-22.00 | 24.00-26.00 | | |
| | | | | | | | | |
3.2 Mechanical Property:
| ASTM | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elogation (%) | Hardness (HRB) |
| 201 | ≥655 | ≥310 | ≥40 | ≤100 |
| 202 | ≥620 | ≥260 | ≥40 | ≤100 |
| 304 | ≥515 | ≥205 | ≥40 | ≤92 |
| 304L | ≥482 | ≥170 | ≥40 | ≤88 |
| 305 | ≥480 | ≥175 | ≥40 | ≤200 |
| 309S | ≥520 | ≥205 | ≥40 | ≤200 |
| | | | |
You can select different sizes stainless steel products with high
quality from a reliable manufacturer with reasonable price. We can
supply stainless tube/pipe, stainless steel sheet&plate,
stainless steel bar, stainless steel wire, stainless steel coil
etc.

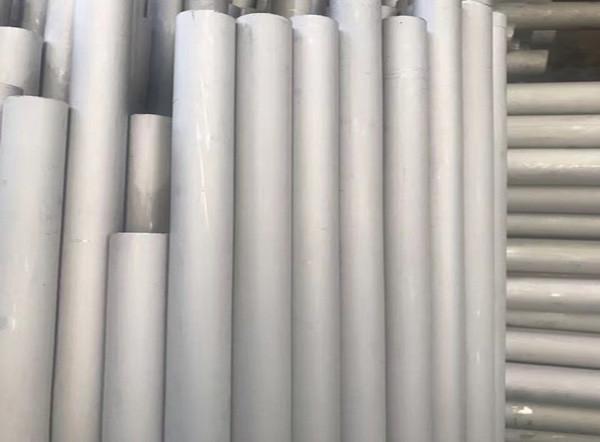

ERW welded/seamless stainless steel tubing show:
