    Bendable Astm A269 316l Stainless Steel Bright Annealed With Flexible Dimension

    Ask Lasest Price
    Brand Name : zheheng
    Model Number : 1"*sch10s
    Certification : ISO9001 PED
    Price : Negotiable
    Payment Terms : L/C, T/T, D/A, D/P
    Supply Ability : 50TONS/30DAYS
    Delivery Time : 30 DAYS
    • Product Details
    • Company Profile

    Bendable Astm A269 316l Stainless Steel Bright Annealed With Flexible Dimension

    ASTM A269/ASME SA269 Stainless steel 316L/S31603 seamless bright annealed tubing


    zheheng steel has the most advanced producing and testing equipment, also have the biggest production scale. The most important is that we have very competitive price on the bright annealed, small diameter tubing / seamless stainless steel tubing

    We can also supply small diameter tubing, bright annealed seamless steel tubing,which are widely used.Petrol, Oil and Nature gas, Chemical Industry,Boiler,Heat Exchange Architecture,Machine Equipment,City Decoration,Bridge, Food and Medical Industry,Electric Components,Shipping Manufacture,


    316L/S31603 seamless bright annealed tubing production size


    SIZE

    		4.76*0.71mm/4.76*0.89mm/4.76*1.24mm
    6*1mm/6*1.5mm
    6.35*0.71mm/6.35*0.89mm/6.35*1.24mm/6.35*1.65mm
    7.94*0.71mm/7.94*0.89mm/7.94*1.24mm/7.94*1.65mm
    9.53*0.71mm/9.53*0.89mm/9.53*1.24mm/9.53*1.65mm
    10*1mm/10*1.5mm/10*2mm
    12*1mm/12*1.5mm
    12.7*0.71mm/12.7*0.89mm/12.7*1.24mm/12.7*1.65mm
    14*1mm/14*1.5mm/14.1*2mm

    C(max)Si(max)Mn(Max)P(max)S(max)CrNiMo
    316L/1.44040.0351.002.000.0450.03016-1810-142.0-3.0

    Standard & Tolerance: ASTM A213,ASTM A269,EN10216-5 TC1,D4/T3

    NDT: Eddy Current or Hydraulic Test

    Heat Treatment: Bright Annealed


    3.1Chemical Composition:3. Material2.Description:

    GradeCSiMnPSNiCrMoN
    201(1Cr17Mn6Ni5N)≤0.15≤1.0≤5.5≤0.06≤0.033.5-5.516.0-18.0—≤0.25
    202(1Cr18Mn8Ni5N)≤0.15≤0.07≤7.5≤0.06≤0.034.0-6.017.0-19.0—≤0.25
    304(0Cr18Ni9)≤0.08≤0.07≤2.0≤0.04≤0.038.0-11.018.0-20.0——
    304L(00Cr18Ni10)≤0.03≤0.07≤2.0≤0.04≤0.038.0-11.018.0-20.0——
    305≤012≤1.00≤2.00≤0.045≤0.03010.5-13.017.0-19.0
    316(0Cr17Ni12Mo2)≤0.08≤0.07≤2.0≤0.04≤0.0311.0-14.016.0-18.02.0-3.0—
    316L(0Cr17Ni14Mo2)≤0.03≤0.07≤2.0≤0.04≤0.0311.0-14.016.0-18.02.0-3.0—
    309s≤0.08≤1.00≤2.0≤0.045≤0.0312.00-15.0022.00-24.00

    3.2 Mechanical Property:

    ASTMTensile Strength (Mpa)Yield Strength (Mpa)Elogation (%)Hardness (HRB)
    201≥655≥310≥40≤100
    202≥620≥260≥40≤100
    304≥515≥205≥40≤92
    304L≥482≥170≥40≤88
    305≥480≥175≥40≤200
    309S≥520≥205≥40≤200

    4.0 Application:


    Application


    		Architectural/Civil EngineerHandrails, door and window fittings, steel furniture, structural sections etc
    TransportExhaust systems, car trim, road tankers, ship containers, ships chemical tankers etc
    Chemical/PharmaceuticalPressure vessels, process piping etc
    Oil & GasPlatform accomodation, cable trys, subsea pipelines etc
    WaterWater and sewage treatment, water tubing, hot water tankers etc
    MedicalSurgical instruments, surgical implanets, MRI scanners etc.
    Food & DrinkCatering equipment, brewing, food processing etc
    Our Services

    You can select different sizes stainless steel products with high quality from a reliable manufacturer with reasonable price. We can supply stainless tube/pipe, stainless steel sheet&plate, stainless steel bar, stainless steel wire, stainless steel coil etc.

    Tube manufacture and delivery conditions
    1 All NDT activities shall be carried out by qualified and competent level 1,2 and/or 3 personnel
    authorized to operate by the employer.
    The qualification shall be in accordance with ISO 11484 or, at least, an equivalent to it.
    It is recommended that the level 3 personnel be certified in accordance with EN ISO 9712 or, at least, an
    equivalent to it.
    The operating authorization issued by the employer shall be in accordance with a written procedure.
    NDT operations shall be authorized by level 3 NDT individual approved by the employer.
    NOTE The definition of level 1, 2 and 3 can be found in appropriate standards, e.g. EN ISO 9712 and ISO 11484.

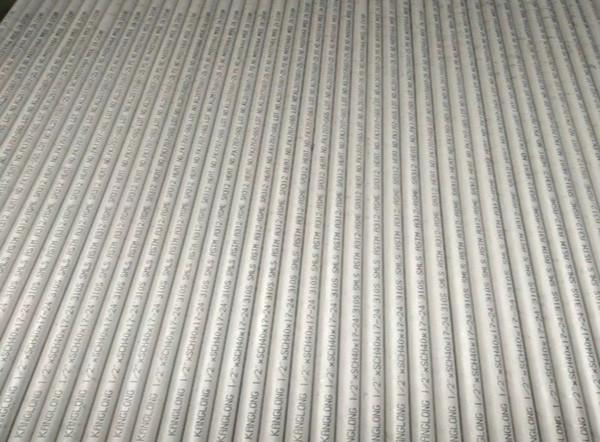

    316L/S31603 seamless bright annealed tubing show:
